Inlet Frames and Grates
Product #22594-6N
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-3/4 x 45-3/4
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 56
Load Rating:
M306
Flow Area:
415
Download PDF

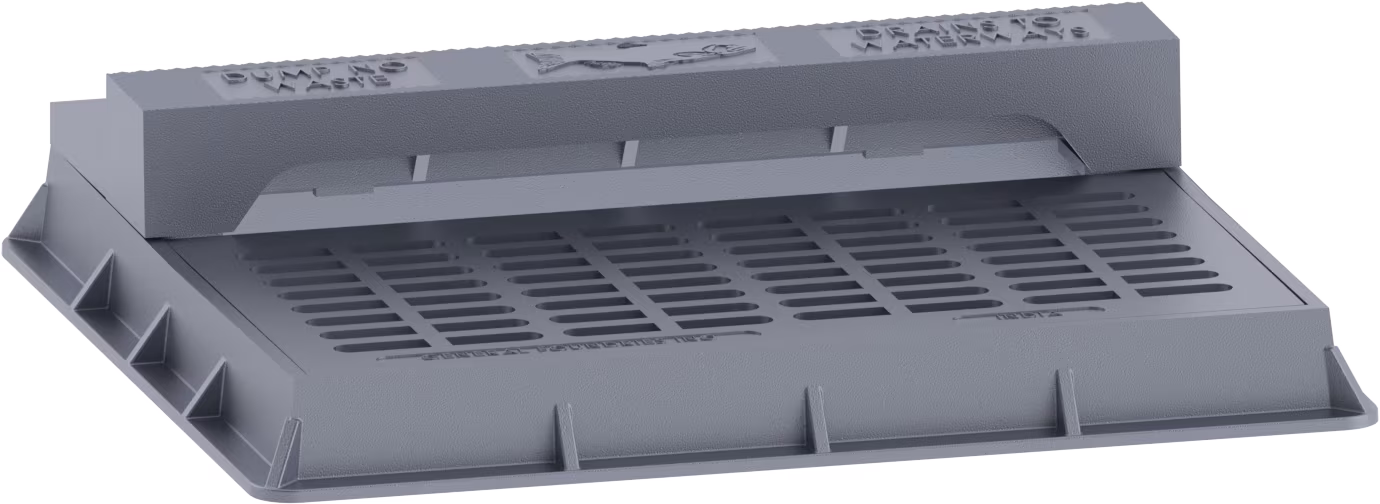

Inlet Frames and Grates
Product #22594-6R
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-3/4 x 45-3/4
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 56
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22594-8N
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-3/4 x 45-3/4
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 56
Load Rating:
M306
Flow Area:
415
Download PDF

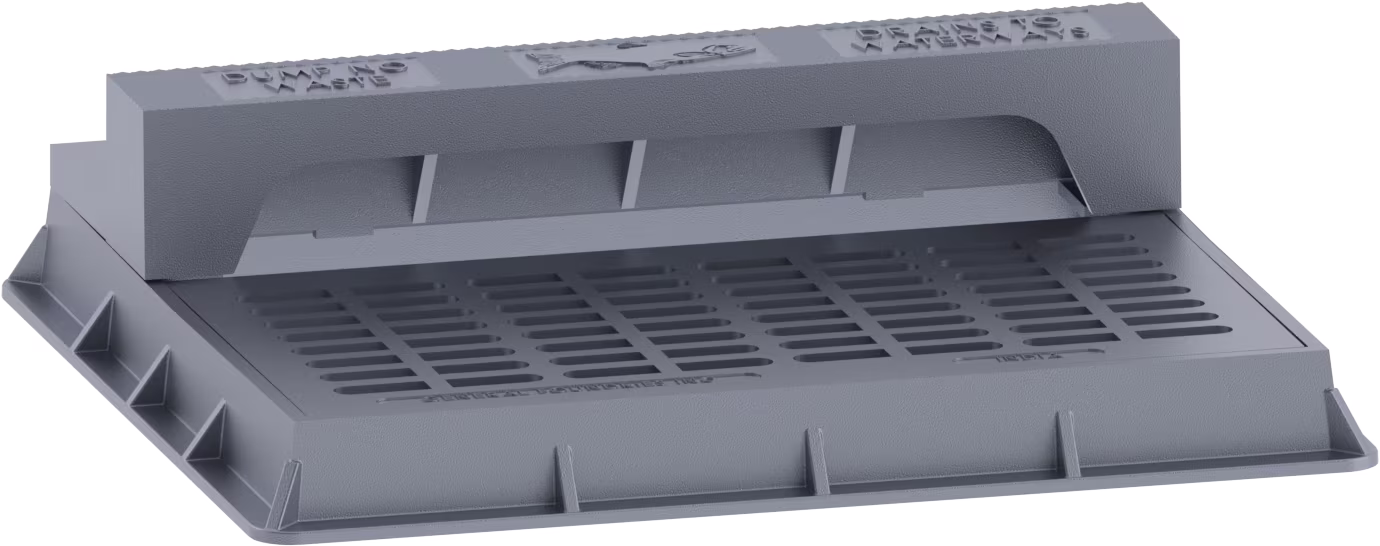

Inlet Frames and Grates
Product #22594-8R
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-3/4 x 45-3/4
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 56
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22596-6N
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-1/2
Frame Height:
5-1/2
Flange ID:
31 x 48
Flange OD:
37 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22596-6R
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-1/2
Frame Height:
5-1/2
Flange ID:
31 x 48
Flange OD:
37 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22596-8N
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-1/2
Frame Height:
5-1/2
Flange ID:
48 x 48
Flange OD:
54 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22596-8R
Grate (WxL):
25-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-1/2
Frame Height:
5-1/2
Flange ID:
31 x 48
Flange OD:
37 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22617-6N
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-3/4
Frame Height:
5-1/2
Flange ID:
30 x 48
Flange OD:
36 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22617-6R
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-3/4
Frame Height:
5-1/2
Flange ID:
30 x 48
Flange OD:
36 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22617-8N
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-3/4
Frame Height:
5-1/2
Flange ID:
30 x 48
Flange OD:
36 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22617-8R
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
28-7/8 x 45-3/4
Frame Height:
5-1/2
Flange ID:
30 x 48
Flange OD:
36 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22618-6N
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-1/2 x 45-1/2
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22618-6R
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-1/2 x 45-1/2
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22618-8N
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-1/2 x 45-1/2
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
Inlet Frames and Grates
Product #22618-8R
Grate (WxL):
21-3/4 x 47-3/4
Seat Height:
1-1/4
Clear Opening:
39-1/2 x 45-1/2
Frame Height:
5-1/2
Flange ID:
42 x 48
Flange OD:
48 x 54
Load Rating:
M306
Flow Area:
415
Download PDF
