Manhole Frames and Grates

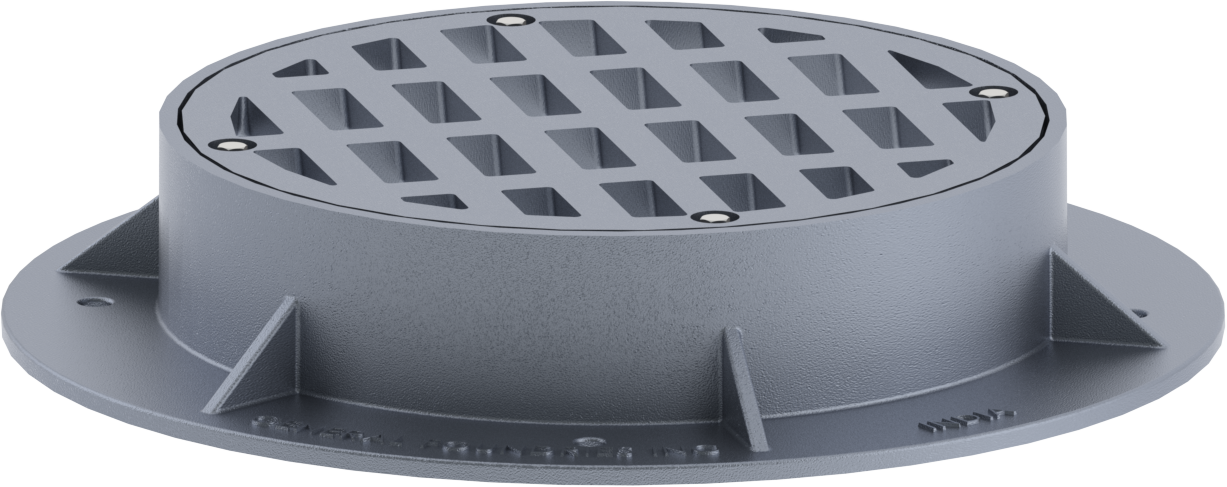

Product #12462-BLT-SLT
Grate (Dia.):
24
Seat Height:
1-1/4
Clear Opening:
22-3/8
Frame Height:
6
Flange ID:
24
Flange OD:
34
Load Rating:
Heavy Duty
Flow Area:
150
Download PDF
