Trench Frames and Grates
Product #21224
Grate (WxL):
12 X 23-3/4
Seat Height:
2
Clear Opening:
10
Frame Height:
2-1/2
Flange ID:
10
Flange OD:
13-1/2
Load Rating:
M306
Flow Area:
105
Download PDF
Trench Frames and Grates
Product #21424
Grate (WxL):
14 X 23-3/4
Seat Height:
2
Clear Opening:
12
Frame Height:
2-1/2
Flange ID:
12
Flange OD:
15-1/2
Load Rating:
M306
Flow Area:
105
Download PDF
Trench Frames and Grates
Product #22024
Grate (WxL):
20 X 23-3/4
Seat Height:
2
Clear Opening:
18
Frame Height:
2-1/2
Flange ID:
18
Flange OD:
21-1/2
Load Rating:
M306
Flow Area:
105
Download PDF

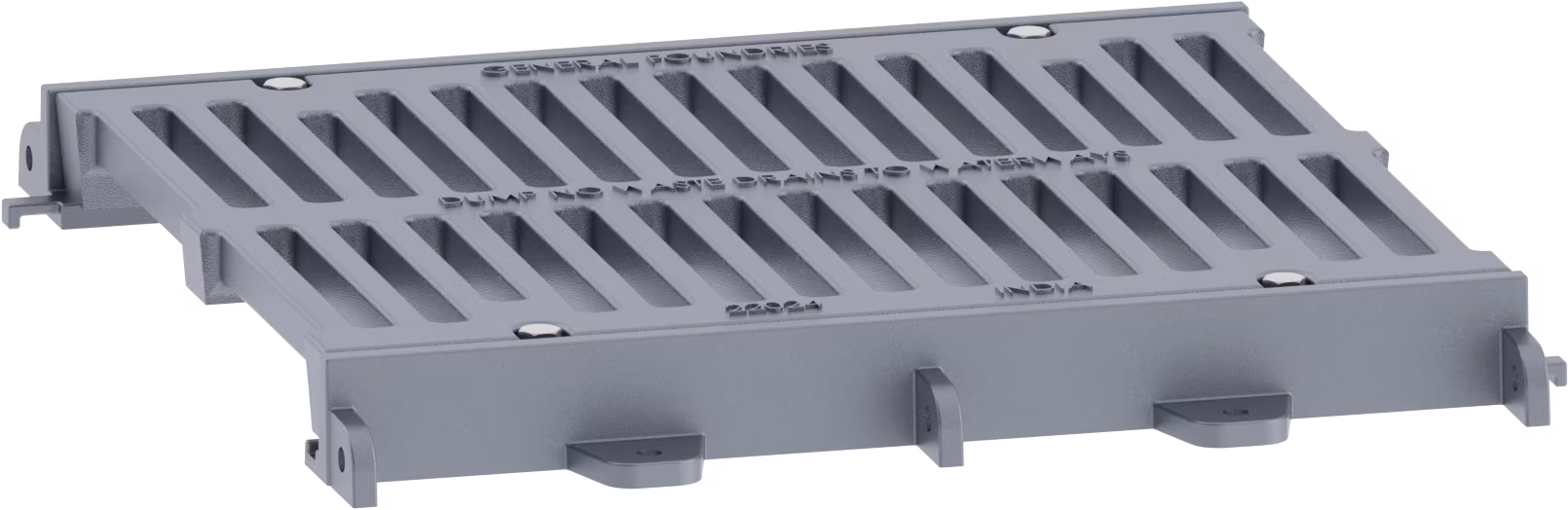

Trench Frames and Grates
Product #22424
Grate (WxL):
24 X 23-3/4
Seat Height:
2
Clear Opening:
22
Frame Height:
2-1/2
Flange ID:
22
Flange OD:
25-1/2
Load Rating:
M306
Flow Area:
105
Download PDF
Trench Frames and Grates
Product #22624
Grate (WxL):
26 X 23-3/4
Seat Height:
2
Clear Opening:
24
Frame Height:
2-1/2
Flange ID:
24
Flange OD:
27-1/2
Load Rating:
M306
Flow Area:
105
Download PDF
